Empty Housing LED Street Light Fixtures 60mm Pole With Die Casting Aluminium

Product Categories

NingBo Die-Casting Man Technology Co.,ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

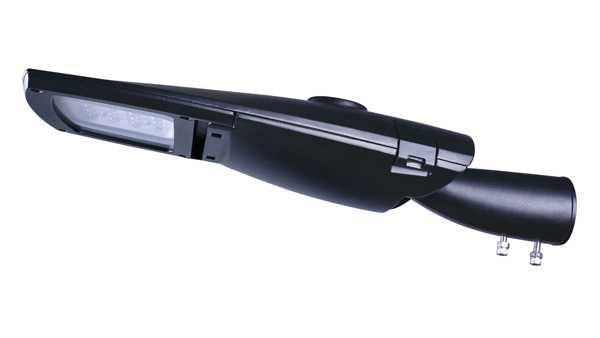

Empty Housing LED Street Light Fixtures 60mm Pole With Die Casting Aluminium

Name: Empty Housing LED Street Light Fixtures 60mm Pole With Die Casting Aluminium
Brand: DIE-CASTING MAN
Price: 1 USD

Wholesale Empty Housing LED Street Light Fixtures 60mm Pole With Die Casting Aluminium from china suppliers

Brand Name : DIE-CASTING MAN

Model Number : YASL-14-80

Certification : CE, RoHs, ENEC, CB

Place of Origin : NINGBO,CHINA

MOQ : 10pcs

Price : negotiation

Supply Ability : 10000pcs/month

Delivery Time : 30-40days

Packaging Details : 1pc/foam/ctn

Material : Die-Casing Aluminium

Wattage : 80W

LED Lifetime : 50000h

Protection Grade : IP66

Pole Size : 60mm

Colour : Black and Grey

Product Size : 738*289*118mm

Contact Now

LED Street Public Lighting YASL-14

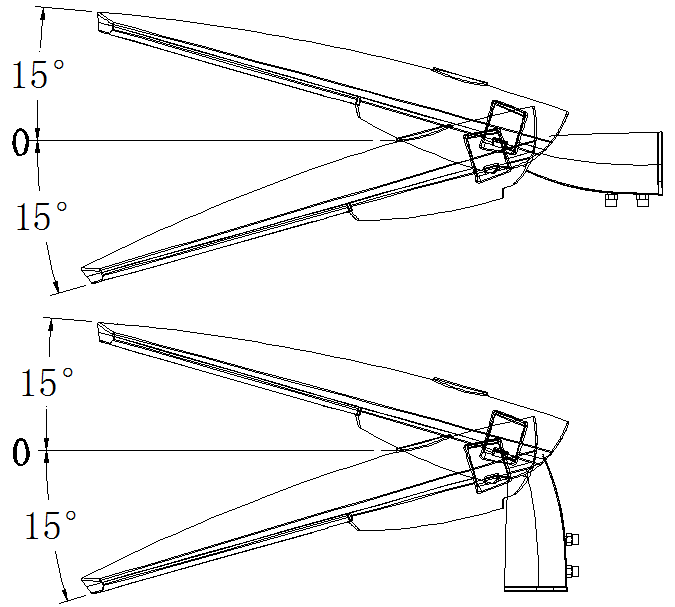

lnstalling Ways:
 Both Horizontal and Vertical available and adjustable angle -15°to+15°

 This series is a high-performance street lighting available in three sizes.
 The lunimaire is manufactured from high pressure die-casting aluminum.
 It shall have a led efficiency up to 130 lm/w and will be capable of producing.
 Up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.
IP66 CE ROHS

Empty Housing LED Street Light Fixtures 60mm Pole With Die Casting Aluminium

Product Specification

Product Code	YASL-14-40	YASL-14-80	YASL-14-120
Input Wattage	60W	120W	200W
Color Temperature	2700～6500K	2700～6500K	2700～6500K
Luminous Flux	7800-9000lm	15600-18000lm	26000-30000lm
Input Voltage	AC90～305V	AC90～305V	AC90～305V
Frequency Range	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF≥0.95	PF≥0.95	PF≥0.95
color rendering index	Ra≥70	Ra≥70	Ra≥70
Temperature of Working Condition	-40～50℃	-40～50℃	-40～50℃
Humidity of Working Condition	20%～90%RH	20%～90%RH	20%～90%RH
LED Lifetime	50000h	50000h	50000h
Protectin Grade	IP66	IP66	IP66
Protection level	IK08/09/10	IK08/09/10	IK08/09/10
Installation Pipe Diameter	φ 45/60mm	φ45/60mm	φ60/70mm
Installation Height	4-6m	6-12m	10-14m
Net Weight	4.6kgs	5.4kgs	9.8kgs
Gross Weight	5.0kgs	6.5kgs	11.5kgs
Packing Size(m m)	670315190	775315190	800390190

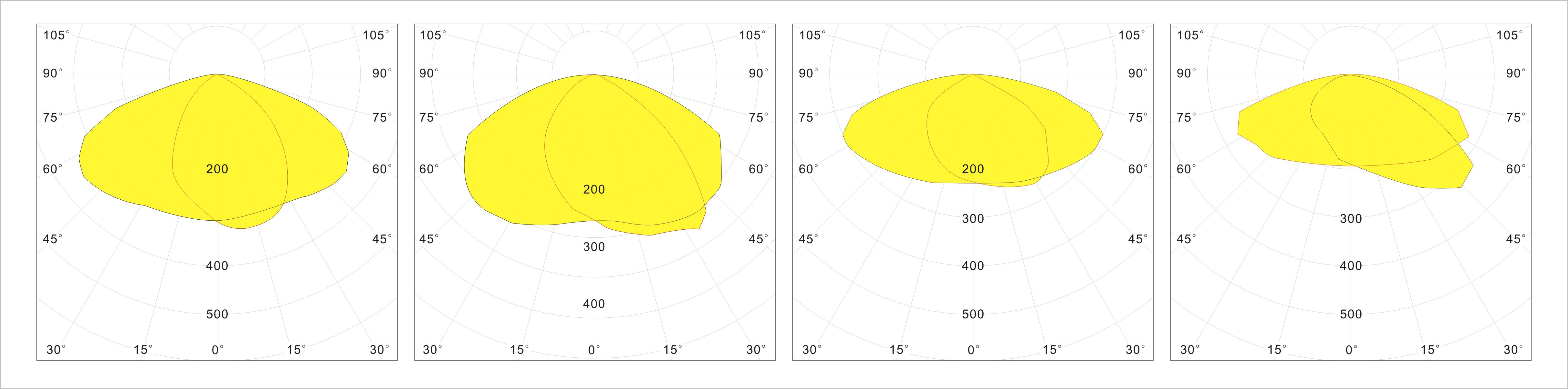

Photometric

Product Size	L mm	W mm	H mm
small	620	287	118
middle	738	289	118
large	922	362	140

Accessories you can select
