All In One Street Light Housing Lithium-Ion Lifepo4 Battery Solar Street Light

Name: All In One Street Light Housing LithiumIon Lifepo4 Battery Solar Street Light
Brand: DIE-CASTING MAN
Price: 1 USD

Wholesale All In One Street Light Housing Lithium-Ion Lifepo4 Battery Solar Street Light from china suppliers

Brand Name : DIE-CASTING MAN

Model Number : ZHSL-16-20

Certification : CE,ROHS, ENEC, CB

Place of Origin : NINGBO,CHINA

MOQ : 5pcs

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 5000PCS / Month

Delivery Time : 10-30days

Packaging Details : foam with carton box

Wattage : 25W 30W 35W 40W

Pretection Grade : IP66

Operating time : 4-5days

Battery : Lithium-ion Li Fepo4 Battery

Solar Panel : Mono-crystalline silicon solar panel

Installation Pipe Diameter : 60mm

Contact Now

All In One Street Light Housing Lithium-Ion Lifepo4 Battery Solar Street Light

Features:
* Flexible selection of high lumen and high luminous flux, customized the best solution of luminaire according

to local sunshine.
* Integreated design, easy installation, each component can be easily replaced and maintained,saving cost.
* The intelligent controller matches the PIR infrared or intelligent microwave sensor to ensure the effective

lighting time of the lamp.
* Adopting high efficiency monocrystalline silicon and conversion rate of 19.8% solar panels, grade A1 32650

battery cells excellent Lithium iron phosphate battery.
* Using special plug connector, color design Fool - proofing, with anti -wrong connection function.
* Adopting adjustable mounted arm, can be adjusted in many angles, suitable for installation requirments of different latitude regions and different type poles.
* Professional waterproof design, protection grade IP66.
* Wind resistance rating 65m/s.

Product Specification:

Product code	YASL-16-10	YASL-16-20
Nominal power	10-20W	25-40W
LED Quantity(LUXEON 3030 2D)	48-96 pcs	96-192 pcs
Color rendering index	Ra≥70	Ra≥70
Luminous Flux	1800-3600 lm	4200-7200 lm
Operating time(Intelligent mode)	4-5 days	4-5 days
Induction distance	12m	8-12m
Mono-Crystalline Silicon solar panel	16-21W	33W
Lithium-ion Li Fepo4 batteries	12.8V,6-12AH	12.8V,16AH
Temperature of Working Condition	-10-60℃	-10-60℃
Humidity of Working Condition	10%-90%RH	10%-90%RH
Warranty	3 Years	3 Years
Protecting Grade	IP66	IP66
Installation Pipe Diameter	60mm	60mm
Installation Height	4-6m	5-7m
Net Weight	5.5kg	7.5kg
Gross Weight	6.0kg	8.0kg
Packing Size	700350160mm	905415190

Pictures:

All In One Street Light Housing Lithium-Ion Lifepo4 Battery Solar Street Light

Installation:

All In One Street Light Housing Lithium-Ion Lifepo4 Battery Solar Street Light

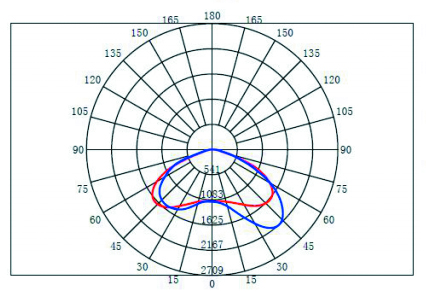

Lighting distribution:
