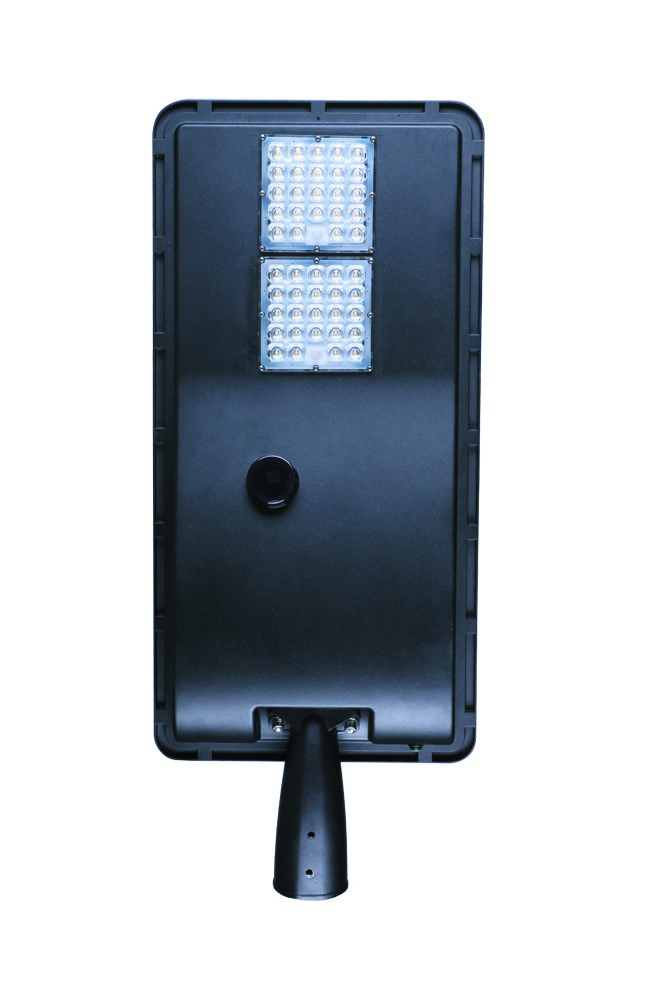

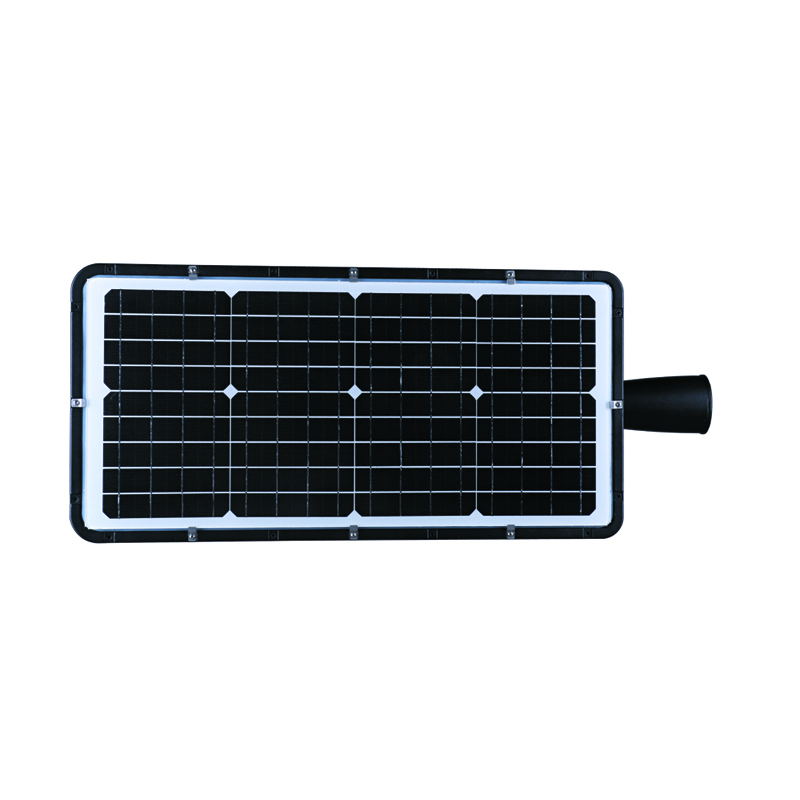

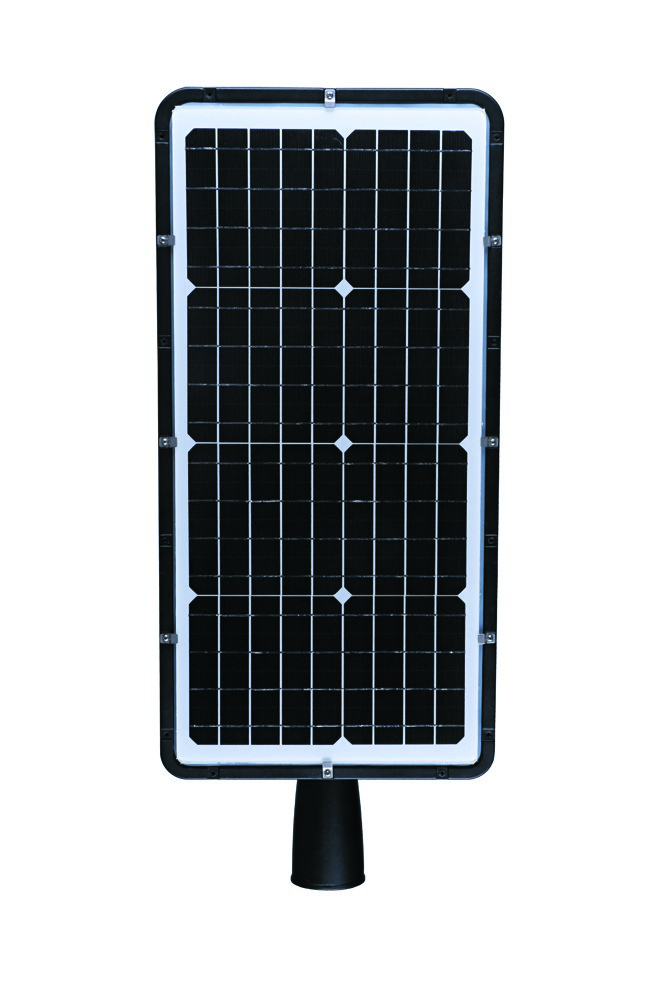

Programmable Intergrated Wireless Solar Street Light DC 12V 24AH

  • 1
  • 2

Brand Name : DIE-CASTING MAN

Model Number : ZHSL-16-20

Certification : CE,ROHS, ENEC, CB

Place of Origin : NINGBO,CHINA

MOQ : 5pcs

Price : negotiation

Payment Terms : T/T

Supply Ability : 5000PCS / Month

Delivery Time : 35days

Packaging Details : 1pcs/foam/ctn

Wattage : 25W 30W 40W

Pretection Grade : IP66

Operating time : 4-5days

Product Size : 666x289x104mm

Color : RAL 9023

IK Grade : IK08

Contact Now

Integrated All in one Solar street light DC 12V aluminium body and panel for road

Product Code
ZHSL-16-20
Rated Power
30W
Working Voltage
DC 12V
Continuously Raining Working Days
4-8days
Woking Time Per Day
6-12hour
LED Quantity
192 pcs(3030)
Luminous Flux
>4500 lm
Mono-Crystalline Silicon solar panel
18V 33W
Lithium ironphosphate
Lithium iron phosphate battery
Battery capacity
24AH
Temperature of Working Condition
-10-60℃
Humidity of Working Condition
10%-90%RH
Guarantee
3 years
Protectin Grade
IP66
Installation Pipe Diameter
φ60mm
Installation Height
5-7m
Net Weight
7.5kg
Gross Weight
8.0kg
Packing Size
910*415*195mm

Product Specification
Product code
YASL-16-10
YASL-16-20
Nominal power
10-20W
25-40W
LED Quantity(LUXEON 3030 2D)
48-96 pcs
96-192 pcs
Color rendering index
Ra≥70
Ra≥70
Luminous Flux
1800-3600 lm
4200-7200 lm
Operating time(Intelligent mode)
4-5 days
4-5 days
Induction distance
12m
8-12m
Mono-Crystalline Silicon solar panel
16-21W
33W
Lithium-ion Li Fepo4 batteries
12.8V,6-12AH
12.8V,16AH
Temperature of Working Condition
-10-60℃
-10-60℃
Humidity of Working Condition
10%-90%RH
10%-90%RH
Warranty
3 Years
3 Years
Protecting Grade
IP66
IP66
Installation Pipe Diameter
60mm
60mm
Installation Height
4-6m
5-7m
Net Weight
5.5kg
7.5kg
Gross Weight
6.0kg
8.0kg
Packing Size
700*350*160mm
905*415*190
Programmable Intergrated Wireless Solar Street Light DC 12V 24AH
Programmable Intergrated Wireless Solar Street Light DC 12V 24AH
Programmable Intergrated Wireless Solar Street Light DC 12V 24AH
Integrated 40w solar street light led
LED light, solar panel, lithium battery and controller, all in one compact design; No wiring, 100% solar powered, easy to install and ship;
Built-in infrared sensor, can adjust the light output automatically; Rust-proof, dustproof and waterproof; 3-year warranty; Applications: street lighting, park lighting, roadway lighting, fence lighting, pathway lighting, campus lighting, ramp lighting, boat dock lighting, sidewalk lighting, remote area lighting, private road lighting, farm and ranch lighting

Programmable Intergrated Wireless Solar Street Light DC 12V 24AH

Programmable Intergrated Wireless Solar Street Light DC 12V 24AH

Programmable Intergrated Wireless Solar Street Light DC 12V 24AH

Features
* Flexible selection of high lumen and high luminous flux, customized the best solution of luminaire according

to local sunshine.
* Integreated design, easy installation, each component can be easily replaced and maintained,saving cost.
* The intelligent controller matches the PIR infrared or intelligent microwave sensor to ensure the effective

lighting time of the lamp.
* Adopting high efficiency monocrystalline silicon and conversion rate of 19.8% solar panels, grade A1 32650

battery cells excellent Lithium iron phosphate battery.
* Using special plug connector, color design Fool - proofing, with anti -wrong connection function.
* Adopting adjustable mounted arm, can be adjusted in many angles, suitable for installation requirments of different latitude regions and different type poles.
* Professional waterproof design, protection grade IP66.
* Wind resistance rating 65m/s.
