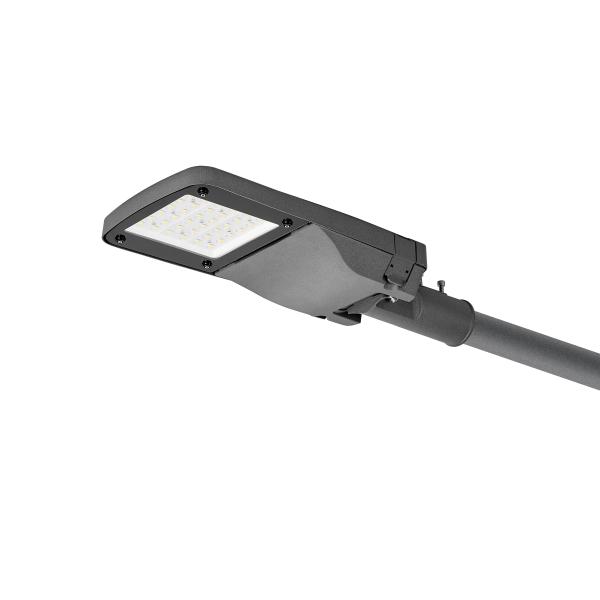

TUV passed tool free smart aluminium led street light for industrial use
Product Datasheet:
| Product Code | ZHSL-19-30 | ZHSL-19-50 |
| Input Wattage | 30W | 50W |
| Color Temperature | 3000-6500K | 3000/4000/6500 |
| Luminous Flux | 3300-3750 lm | 5500-6250 lm |
| Input Voltage | AC90-305V | AC 90-305 V |
| Frequency Range | 50/60Hz | 50/60 Hz |
| Power Factor | PF≥0.95 | PF≥0.95 |
| color rendering index | Ra≥70 | Ra≥70 |
| Temperature of Working Condition | -40-50℃ | -40--50℃ |
| Humidity of Working Condition | 20%-90%RH | 20%-90%RH |
| LED Lifetime | 50000h | 50000 h |
| Protectin Grade | IP66 | IP 66 |
| Installation Pipe Diameter | φ60mm | φ60 mm |
| Installation Height | 4-6m | 4-6 m |
| Net Weight | 3 kgs | 3.5 kgs |
| Gross Weight | 3.5 kgs | 4 kgs |
| Packing Size | 51*23.6*15 cm | 63*28*15.5 cm |
| Power | Item No. | LED Type | Lumen | Driver | Surge Protection | PF | Lamp Size |
| 40W | YASL-19-30-40W | Philips 3030 | 100-150lm/W | Inventronics or Sosen or Meanwell | >10KV | >0.95 | 577*233*103mm |
| 60W | YASL-19-50-60W | Philips 3030 | 100-150lm/W | Inventronics or Sosen or Meanwell | >10KV | >0.95 | 577*233*103mm |
Product Dimension:
Model YASL-19 LED lamp is a sample and efficient product that significantly reduces energy, maintenance costs. One of the features of this lamp is that it does not need tools to replace parts to upgrade it. Another feature of this lamp is the ability to install horizontally and vertically. Model YASL-19 LED light is available in three sizes and six light distribution curves from 4500 to 27000 lumens. The YASL-19 LED lamp with an optical gain of up to 130 lumens per watt has a long life of more than 100,000 hours. The useful life of this lamp is at least 20 years.
ENEC/CB certifications
These certifications, which currently constitute the most important and strict product certification schemes, ensure compliance with European requirements regarding product quality and electrical safety.
ENEC SCHEME
The ENEC (European Norms Electrical Certifications) certification scheme has high prestige within the global electrical field as a complement to the CE marking in terms of electrical safety and manufacturing quality. This is a complete product certification scheme in accordance with ISO / IEC 17067, originally developed within the CENELEC, European Committee for Electrotechnical Standardization, responsible for European standardization in the areas of electrical engineering, and operating under the authority of the European association of certification of electrical products.
For this goal, our streetlights and their corresponding production processes are subjected to a strict and complete examination carried out by independent notified and accredited European organizations, which through auditing and technical testing processes, certify that:
- The product strictly complies with European standards and standards in the field of electrical safety
- The production and quality control processes are carried out following the quality standards set by the ISO 9000 standard
- Through periodic inspections, it is demonstrated that both the product and its production processes remain unchanged over time
CB SCHEME
The CB Certification Scheme is an international system created by the International Electrotechnical Committee (IEC) and its conformity assurance system (IECEE), which eases the obtaining of conformity marks of certification bodies between different countries for electrical products, electronics and components.
In order to obtain it, it is mandatory to carry out product tests in accordance with IEC standards in accredited laboratories (CB Testing Laboratories (CBTL). Products with this certificate can automatically obtain the national conformity mark of any country adherent to the scheme, with the only requirement of being sent to a CBTL laboratory in the country of destination for validation and approval.
