Vertical And Horizontal Installed Led Light Street 120w 150w 180w 200w

Name: Vertical And Horizontal Installed Led Light Street 120w 150w 180w 200w
Brand: Die Casting Man
Price: 1 USD

Wholesale Vertical And Horizontal Installed Led Light Street 120w 150w 180w 200w from china suppliers

Brand Name : Die Casting Man

Model Number : YASL-19-150

Certification : CE, RoHs, ENEC, CB

Place of Origin : China

MOQ : 10pcs

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 10000PCS/Month.

Delivery Time : 7-30days after final confirm

Packaging Details : styrofoam package and carton box

Power : 200w

Material : Die cating aluminium YA102

Body Color : Gray, White, Brown

Color Temperature : 3000-6500K

Ambient Temperature : -40-50℃

Ambient Humidity : 20%-90%RH

Installing Ways : Vertical and Horizontal

Installing Pipe Dia : Φ60mm

Contact Now

Vertical and Horizontal installed 120w 150w 180w 200w casting aluminum led street light for Main road and High way

YASL-19

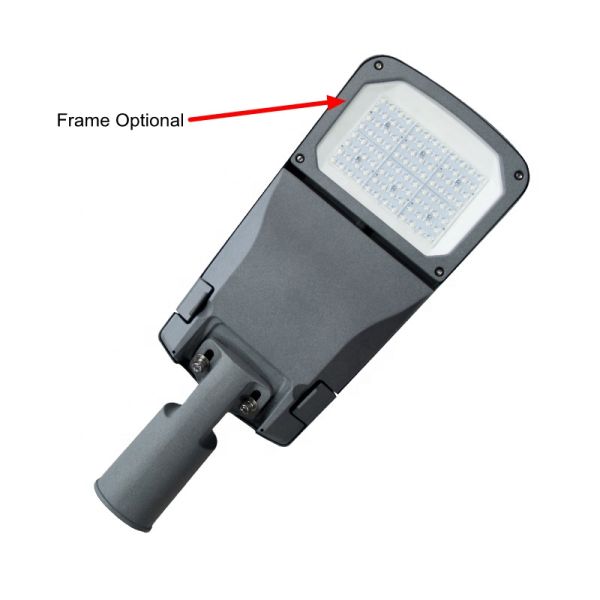

It has two optional. One is Glass optional, and the other is Frame optional.

Vertical And Horizontal Installed Led Light Street 120w 150w 180w 200w

Product Details:

Product Code	YASL-19-30	YASL-19-50	YASL-19-80	YASL-19-150
Input Wattage	30W	50W	80W	150W
Color Temperature	3000-6500K	3000-6500K	3000-6500K	3000-6500K
Luminous Flux	3300-3750 lm	5500-6250 lm	9200-10400 lm	17250-19500 lm
Input Voltage	AC90-305V	AC90-305V	AC90-305V	AC90-305V
Frequency Range	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF≥0.95	PF≥0.95	PF≥0.95	PF≥0.95
Color rendering index	Ra≥70	Ra≥70	Ra≥70	Ra≥70
Temperature of Working Condition	-40-50℃	-40-50℃	-40-50℃	-40-50℃
Humidity of Working Condition	20%-90%RH	20%-90%RH	20%-90%RH	20%-90%RH
LEDLifetime	50000h	50000h	50000h	50000h
Protection Grade	IP66	IP66	IP66	IP66
Installation Pipe Diameter	⌀60mm	⌀60mm	⌀60mm	⌀60mm
Installation Height	4-6m	4-6m	6-10m	8-12m
Net Weight	3.0Kg	3.7Kg	6.0Kg	7.4Kg
Gross Weight	3.5Kg	4.2Kg	6.5Kg	8.0Kg
Packing Size(mm)	510×236×150	620×270×155	670×310×155	810×340×155

 Optical Distribution Control  Each LED is covered by a special optical lens, this lens makes the lights rays are parallel to each other  instead of intersecting,so the lights go to where it's needed.  there is a reflecting cavity mounted inside the lens, which could recycle the light,  ensure as much as possible light is used to illuminate the target.  Die-casting Man LED street lights could meet the specific light pattern requirement to comply with roadway regulations.

Vertical And Horizontal Installed Led Light Street 120w 150w 180w 200w

Product Tags:

led light street 150w

led light street 180w

horizontal led street light 120 watt
